We are the appointed official distributor for Hydrovane, covering Norfolk, Suffolk and Essex and would be happy to advise you on any machine in their range.

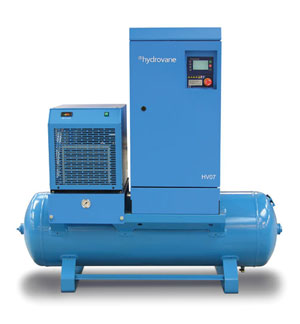

The Hydrovane range offers exceptional performance through the simplicity of the rotary vane principle.  This gives reliability, quality air, efficiency, quiet, long-lasting equipment.  Hydrovane provides this with the Hypac and the 50Hz range covering all your business needs with a 10 year “built in” advance warranty programme.

If you would like more information on the Hydrovane range please contact us now to request a brochure.

How it works

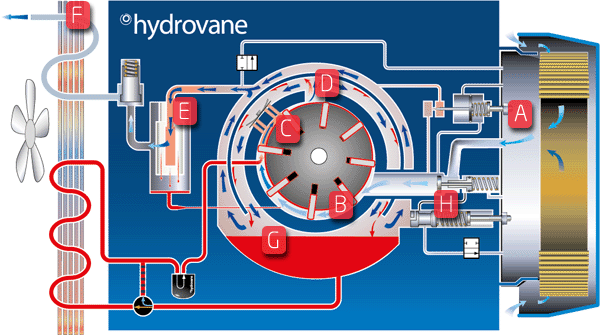

The graphic below illustrates the Rotary Vane principle.

A  Air is drawn in through the intake valve

B  Air is contained between the rotor and the stator wall

C  Air is compressed by decreasing volume.  Oil is continually injected to cool, seal and lubricate

D  High pressure air passes into the primary oil separator

E  Remaining traces of oil are removed in a final separator element, providing high quality air

F  System air passes through the aftercooler, removing most of the condensate

G  Oil is circulated by internal air pressure.  It passes through an air-blast oil cooler and filter before being returned into the compressor

H  Air flow is regulated by an inbuilt modulation system.
